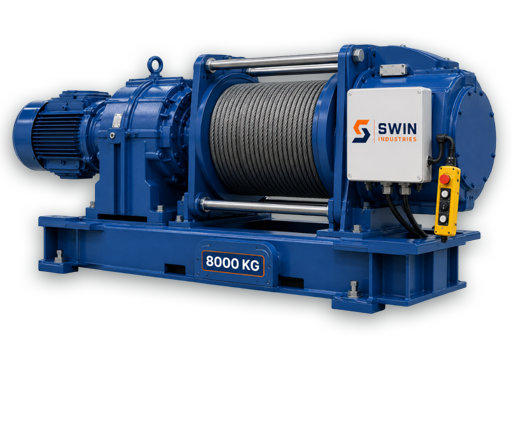

The 8000 kg Electric Winch is designed for extra heavy-duty lifting applications. It is suitable for handling heavy machinery, industrial assemblies, structural components, and large maintenance loads.
Get A Quote
| Technical Parameter | Details |
| Model | EW-8.0T |
| Motor | 18.5 kW / 25 HP, 3 Phase brake motor |
| Voltage / Frequency | 415 / 440 V AC, 50 Hz |
| Motor Speed | 1440 RPM approx. |
| Drum Diameter | Ø520 mm approx. |
| Brake | Heavy-duty fail-safe electromagnetic brake |
| Control Panel | Forward-Reverse panel with motor protection, brake rectifier, emergency stop, pendant control, and optional limit switch provision |
| Protection | IP55 standard, IP65 optional |
