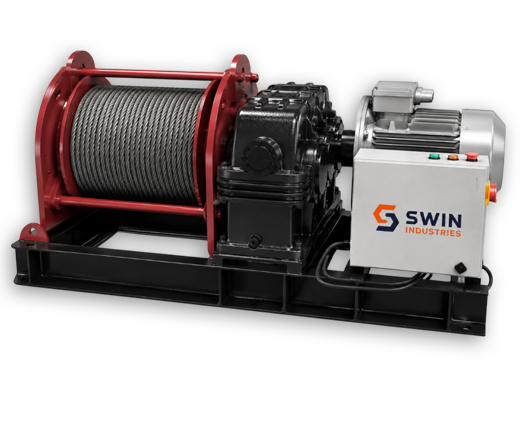

The 7000 kg Electric Winch is designed for heavy lifting applications requiring high pulling torque, smooth lifting speed, and reliable safety arrangement. It is suitable for lifting large industrial components, fabricated structures, and heavy machinery.
Get A Quote
| Technical Parameter | Details |
| Model | EW-7.0T |
| Motor | 15 kW / 20 HP, 3 Phase brake motor |
| Voltage / Frequency | 415 / 440 V AC, 50 Hz |
| Motor Speed | 1440 RPM approx. |
| Drum Diameter | Ø480 mm approx. |
| Brake | Heavy-duty fail-safe electromagnetic brake |
| Control Panel | Forward-Reverse panel with motor protection, brake rectifier, emergency stop, pendant control, and optional limit switch provision |
| Protection | IP55 standard, IP65 optional |
