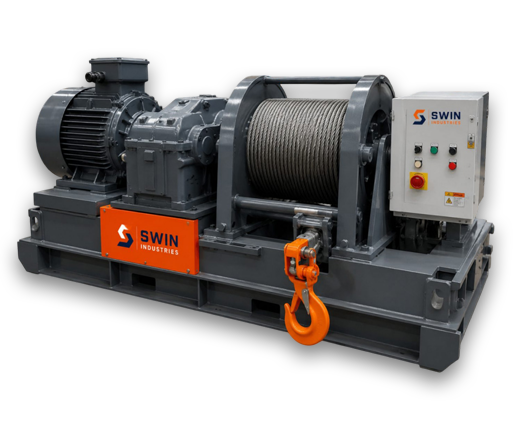

The 4000 kg Electric Winch is designed for heavy-duty lifting applications where higher torque and controlled speed are required. It is suitable for plant maintenance, heavy equipment handling, fabrication shops, and industrial lifting systems.
Get A Quote
| Technical Parameter | Details |
| Model | EW-4.0T |
| Motor | 7.5 kW / 10 HP, 3 Phase brake motor |
| Voltage / Frequency | 415 / 440 V AC, 50 Hz |
| Motor Speed | 1440 RPM approx. |
| Drum Diameter | Ø360 mm approx. |
| Brake | Fail-safe electromagnetic brake |
| Control Panel | Forward-Reverse panel with motor protection, brake rectifier, emergency stop, pendant control, and optional limit switch provision |
| Protection | IP55 standard, IP65 optional |
