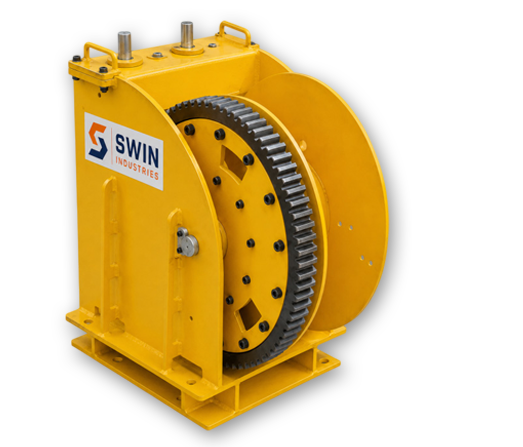

Worm Gear 2000 kg Hand Winch

Name: 1000 kg Heavy-Duty Portable Davit Crane
Brand: Swin Industries
Availability: InStock

Heavy-Duty 2000 kg Worm Gear Winch

The Worm Gear 2000 kg Hand Winch is a heavy-duty manual winch designed for controlled lifting and pulling applications. Its worm gear mechanism provides smooth operation, high torque transmission, and stable load control for demanding industrial use.

Get A Quote

Unique Features :

Heavy-duty worm gear drive
High torque and controlled operation
Strong and durable construction
Safe and stable load holding
Suitable for industrial lifting and pulling

Specifications :

Type : Worm Gear Hand Winch

Operation : Manual

Finish : Epoxy / Powder Coated

Application : Heavy-duty lifting and pulling

Parameter	Details
Capacity - 1st Layer	2000 kg
Capacity - 3rd Layer	1500 kg
Capacity - Top Layer	1020 kg
Wire Rope Diameter-Ø	12 mm
Wire Rope Length	30 mtr
Weight	90 kg without wire rope
Safety Factor	1.5
Brake Type	Load Pressure Brake with Ratchet Pawl Mechanism
Load Holding	In any position
