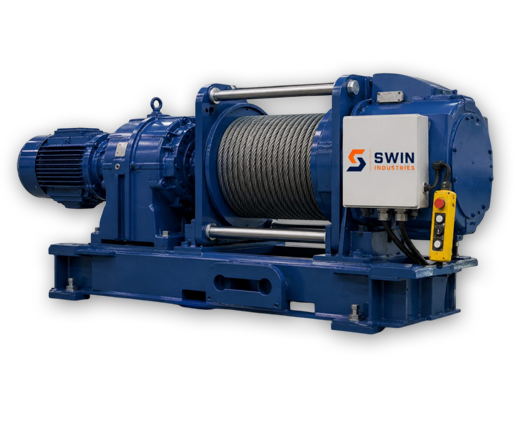

The 3000 kg Electric Winch is suitable for heavy-duty lifting operations in industrial plants, workshops, construction support systems, and maintenance applications. It is designed with a strong rope drum, heavy-duty frame, 3 Phase brake motor, and helical-bevel gearbox
Get A Quote
| Technical Parameter | Details |
| Model | EW-3.0T |
| Motor | 5.5 kW / 7.5 HP, 3 Phase brake motor |
| Voltage / Frequency | 415 / 440 V AC, 50 Hz |
| Motor Speed | 1440 RPM approx. |
| Drum Diameter | Ø320 mm approx. |
| Brake | Fail-safe electromagnetic brake |
| Control Panel | Forward-Reverse panel with motor protection, brake rectifier, emergency stop, pendant control, and optional limit switch provision |
| Protection | IP55 standard, IP65 optional |
