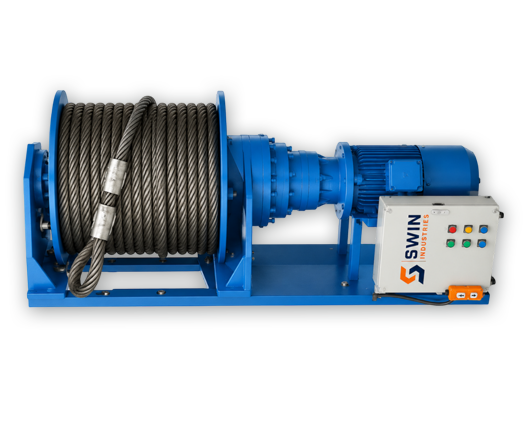

The 1500 kg Electric Winch is designed for medium-duty industrial lifting applications where higher load capacity and controlled operation are required. It is suitable for lifting machine parts, maintenance components, fabrication materials, and industrial loads.
Get A Quote
| Technical Parameter | Details |
| Model | EW-1.5T |
| Motor | 2.2 kW / 3 HP, 3 Phase brake motor |
| Voltage / Frequency | 415 / 440 V AC, 50 Hz |
| Motor Speed | 1440 RPM approx. |
| Drum Diameter | Ø240 mm approx. |
| Brake | Fail-safe electromagnetic brake |
| Control Panel | Forward-Reverse panel with motor protection, brake rectifier, emergency stop, pendant control, and optional limit switch provision |
| Protection | IP55 standard, IP65 optional |
