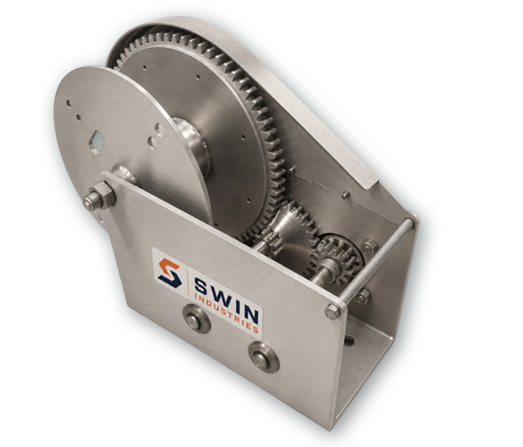

Spur Gear 800 kg Hand Winch SS304 / SS316

Stainless Steel 800 kg Spur Gear Winch

The Spur Gear 800 kg Hand Winch SS304 / SS316 is a stainless steel manual winch designed for medium to heavy-duty lifting and pulling applications. Its spur gear drive provides smooth manual operation, while the SS304 / SS316 construction makes it suitable for corrosion-prone, outdoor, marine, and hygienic environments.

Get A Quote

Unique Features :

Available in SS304 / SS316 material
Corrosion-resistant stainless steel construction
Smooth operation with spur gear drive
Suitable for lifting and pulling applications
Strong and durable design

Specifications :

Type : Spur Gear Hand Winch

Operation : Manual

Finish : Stainless steel finish

Application : Medium / heavy-duty lifting and pulling

Material : SS304 / SS316

Parameter	Details
Capacity - 1st Layer	800 kg
Capacity - 3rd Layer	680 kg
Capacity - Top Layer	550 kg
Wire Rope Diameter-Ø	8 mm
Wire Rope Length	15 mtr
Weight	18 kg without wire rope
Safety Factor	1.5
Brake Type	Load Pressure Brake with Ratchet Pawl Mechanism
Load Holding	In any position
