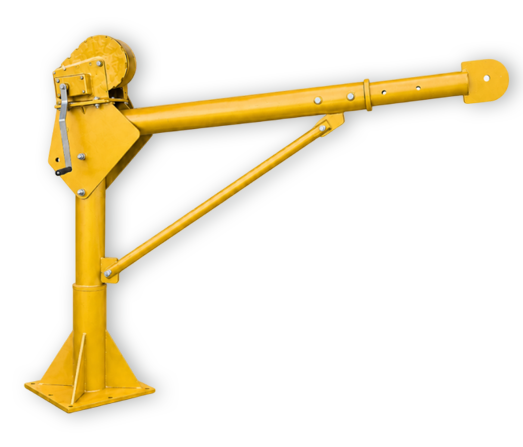

Portable Davit Crane - 1000 kg

Material : Mild Steel / HDG / Epoxy Painted

The 1000 kg Heavy-Duty Portable Davit Crane is a robust and powerful lifting solution engineered specifically for high-capacity industrial applications. Fabricated from premium, high-strength mild steel, this crane is structurally optimized to safely handle heavy loads up to 1000 kg with absolute stability.

Get A Quote

Unique Features :

Heavy-duty portable davit crane design for industrial lifting applications
Strong mild steel construction suitable for 1000 kg load handling
Available with Hot Dip Galvanized or Epoxy Painted finish for corrosion protection
Telescopic boom arrangement for adjustable working reach
360° manual rotation for easy load positioning and controlled operation

Specifications :

Type : Portable Davit Crane

Operation : Manual Winch Operated

Finish : Hot Dip Galvanized / Epoxy Painted

Application : Heavy-duty lifting / lowering / load positioning

Technical Specifications :

Parameter	Details
Capacity	1000 kg
Material	Mild Steel
Boom Length	1 mtr to 2.5 mtr
Rotation	360° Manual Rotation
Operation	Manual Winch Operated
Wire Rope Diameter-Ø	10 mm / 12 mm, as per design
Mounting Arrangement	Heavy-Duty Base Plate with Anchor Bolts
Finish	Hot Dip Galvanized / Epoxy Painted
Load Holding	Manual Winch with Brake Arrangement
Testing	Load Testing / TPI can be provided as required
