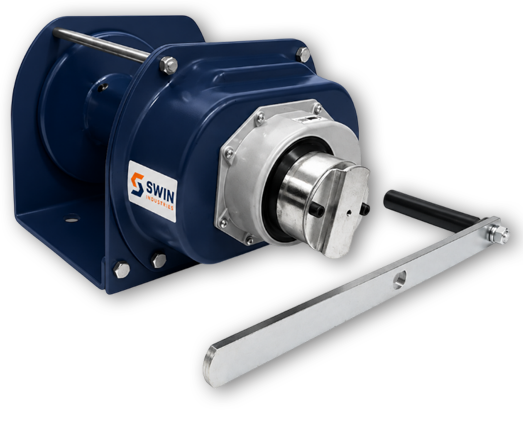

Spur Gear 250 kg Rescue Hand Winch

250 kg Spur Gear Rescue Winch

The Spur Gear 250 kg Rescue Hand Winch is a manual rescue winch designed for confined space entry and retrieval applications. It is suitable for controlled lifting and lowering of personnel or equipment during rescue, maintenance, and access work.

Get A Quote

Unique Features :

Suitable for confined space entry applications
Smooth operation with spur gear drive
Controlled lifting and lowering
Safe load holding in any position
Safet Factor 4

Specifications :

Type : Spur Gear Rescue Hand Winch

Operation : Manual

Finish : Epoxy / Powder Coated

Application : Confined space entry / rescue retrieval

Mounting : Tripod / davit arm mounting

Parameter	Details
Capacity - 1st Layer	250 kg
Capacity - 3rd Layer	225 kg
Capacity - Top Layer	200 kg
Wire Rope Diameter-Ø	8 mm
Wire Rope Length	20 mtr
Weight	15 kg without wire rope
Safety Factor	4
Brake Type	Load Pressure Brake with Ratchet Pawl Mechanism
Load Holding	In any position
