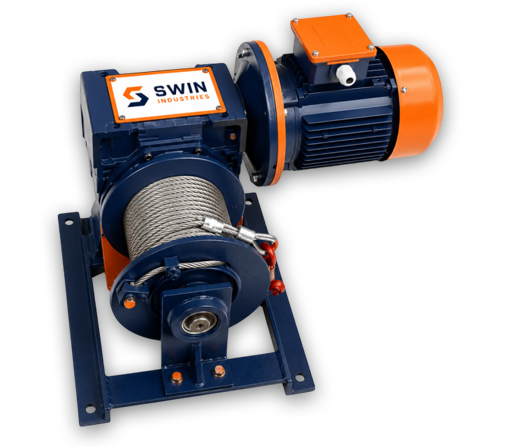

The 500 kg Electric Winch is designed for light industrial lifting applications where compact size, safe operation, and controlled lifting are required. It is suitable for workshop use, maintenance work, small machine handling, and general material lifting.
Get A Quote
| Technical Parameter | Details |
| Model | EW-0.5T |
| Motor | 0.75 kW / 1 HP, 3 Phase brake motor |
| Voltage / Frequency | 415 / 440 V AC, 50 Hz |
| Motor Speed | 1440 RPM approx. |
| Drum Diameter | Ø160 mm approx. |
| Brake | Fail-safe electromagnetic brake |
| Control Panel | Forward-Reverse panel with motor protection, brake rectifier, emergency stop, pendant control, and optional limit switch provision |
| Protection | IP55 standard, IP65 optional |
