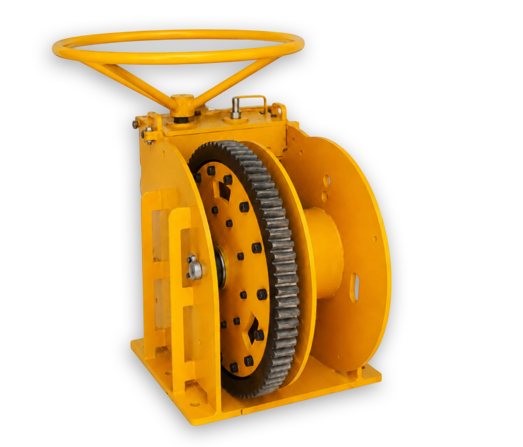

Worm Gear 4000 kg Hand Winch

4000 kg Industrial Worm Gear Hand Winch

The Worm Gear 4000 kg Hand Winch is designed for heavy industrial lifting and pulling operations where high load capacity and controlled movement are required. Its worm gear system supports steady operation and helps maintain better control during load handling.

Worm Gear 4000 kg Hand Winch

Unique Features :

  • Designed for high-load manual operation
  • Worm gear system for steady and controlled movement
  • Strong body construction for industrial use
  • Suitable for heavy lifting, pulling, and positioning work
  • Epoxy / powder coated finish for durability

Specifications :

Type : Worm Gear Hand Winch
Operation : Manual
Finish : Epoxy / Powder Coated
Application : Heavy industrial lifting / pulling

Parameter Details
Capacity - 1st Layer 4000 kg
Capacity - 3rd Layer 2900 kg
Capacity - Top Layer 2100 kg
Wire Rope Diameter-Ø 14 mm
Wire Rope Length 30 mtr
Weight 180 kg without wire rope
Safety Factor 1.5
Brake Type Load Pressure Brake with Ratchet Pawl Mechanism
Load Holding In any position
