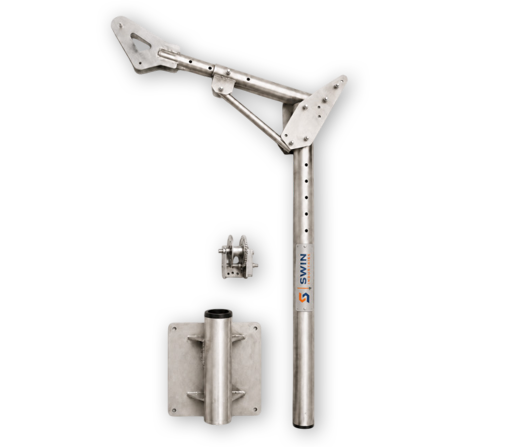

Wall Mounted Davit Crane - 250 kg

Material : SS304 / SS316

The Wall Mounted Stainless Steel Davit Crane is an innovative, space-saving lifting solution engineered specifically for areas where floor mounting is restricted or floor space is limited. Fabricated from high-grade SS304 or SS316 stainless steel, this crane offers exceptional resistance to corrosion, making it perfect for harsh, humid, and chemical-prone industrial environments.

Get A Quote

Unique Features :

Compact wall mounted davit crane design for space-saving lifting applications
SS304 / SS316 construction for corrosion resistance and long service life
Suitable for areas where floor mounting is not possible or floor space is limited
180° / 360° manual rotation option depending on wall bracket design
Suitable for lifting, lowering, maintenance, pump area, tank area, and industrial use

Specifications :

Type : Wall Mounted Davit Crane

Operation : Manual Winch Operated

Finish : Natural Stainless Steel / Matt Finish

Application : Light-duty lifting / lowering / load positioning

Technical Specifications :

Parameter	Details
Capacity	250 kg
Material	SS304 / SS316
Mounting Type	Wall Mounted
Boom Length	1 mtr to 2.5 mtr, as per design
Rotation	180° / 360° Manual Rotation, as per design
Operation	Manual Winch Operated
Wire Rope Diameter-Ø	5 mm / 6 mm, as per design
Mounting Arrangement	Wall Bracket with Anchor Bolts
Finish	Natural Stainless Steel / Matt Finish
Load Holding	Manual Winch with Brake Arrangement
Testing	Load Testing / TPI can be provided as required
