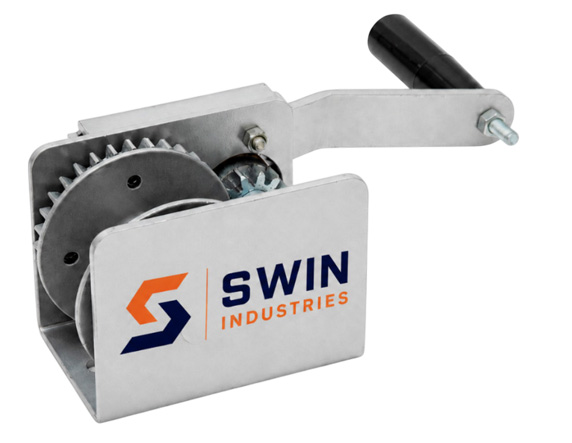

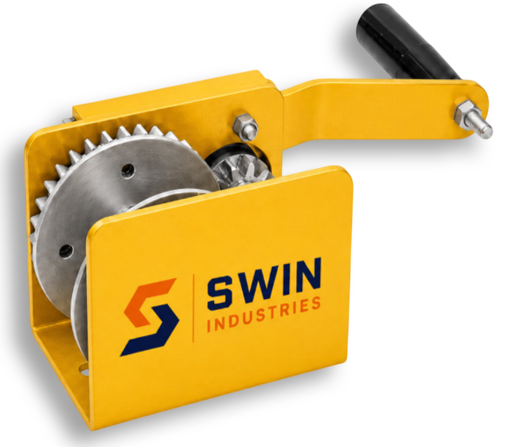

Spur Gear 100 kg Hand Winch

Light-Duty Spur Gear Hand Winch

The Spur Gear 100 kg Hand Winch is a compact and lightweight manual winch designed for small lifting and pulling applications. Its direct spur gear mechanism allows faster operation and easy handling, making it suitable for light-duty work where space and portability are important.

Get A Quote

Unique Features :

Fast operation due to direct spur gear drive
Compact and lightweight design
Load pressure brake with double ratchet system
Holds the load safely in any position
Epoxy / powder coated finish

Specifications :

Type : Spur Gear Hand Winch

Operation : Manual

Application : Light-Duty Lifting / Pulling

Finish : Epoxy / Powder Coated

Parameter	Details
Capacity - 1st Layer	100 kg
Capacity - 3rd Layer	60 kg
Capacity - Top Layer	50 kg
Wire Rope Diameter-Ø	4 mm
Wire Rope Length	10 mtr
Weight	2.4 kg without wire rope
Safety Factor	2
Brake Type	Load Pressure Brake with Ratchet Pawl Mechanism
Load Holding	In any position
