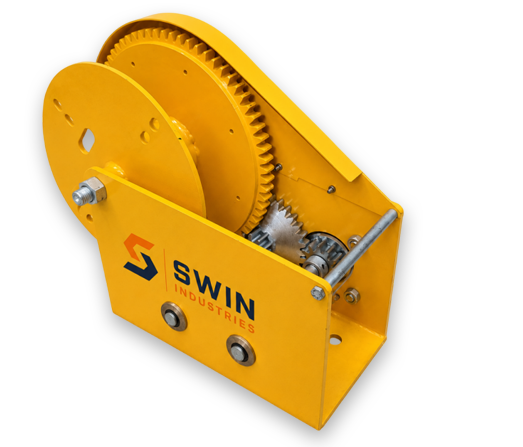

Spur Gear 1000 kg Hand Winch

Industrial 1000 kg Hand Winch

The Spur Gear 1000 kg Hand Winch is a heavy-duty manual winch designed for industrial lifting and pulling applications. Its spur gear drive provides reliable operation and controlled handling, making it suitable for demanding material handling work.

Get A Quote

Unique Features :

Heavy-duty construction / SS316 material
Smooth operation with spur gear drive
Strong and reliable load holding
Suitable for industrial lifting and pulling
Epoxy / powder coated finish

Specifications :

Type : Spur Gear Hand Winch

Operation : Manual

Finish : Epoxy / Powder Coated

Application : Heavy-duty lifting and pulling

Parameter	Details
Capacity - 1st Layer	1000 kg
Capacity - 3rd Layer	750 kg
Capacity - Top Layer	600 kg
Wire Rope Diameter-Ø	8 mm
Wire Rope Length	15 mtr
Weight	18 kg without wire rope
Safety Factor	1.5
Brake Type	Load Pressure Brake with Ratchet Pawl Mechanism
Load Holding	In any position
