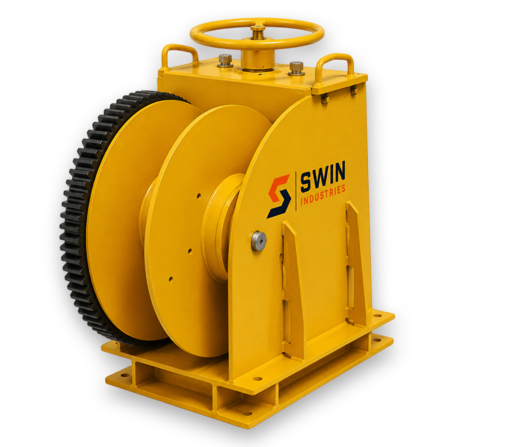

Worm Gear 5000 kg Hand Winch

5000 kg Industrial Worm Gear Hand Winch

The Worm Gear 5000 kg Hand Winch is designed for heavy industrial lifting, pulling, and load positioning applications where high load capacity and controlled movement are required. Its worm gear mechanism provides steady operation, strong torque transmission, and reliable load control for demanding industrial use.

Get A Quote

Unique Features :

Designed for heavy-duty manual operation
Worm gear drive for controlled load movement
Strong and robust construction for industrial use
Suitable for lifting, pulling, and positioning applications
Epoxy / powder coated finish for long service life

Specifications :

Type : Worm Gear Hand Winch

Operation : Manual

Finish : Epoxy / Powder Coated

Application : Heavy-duty lifting / pulling / positioning

Parameter	Details
Capacity - 1st Layer	5000 kg
Capacity - 3rd Layer	3500 kg
Capacity - Top Layer	3000 kg
Wire Rope Diameter-Ø	16 mm
Wire Rope Length	30 mtr
Weight	220 kg without wire rope
Safety Factor	1.5
Brake Type	Load Pressure Brake with Ratchet Pawl Mechanism
Load Holding	In any position
