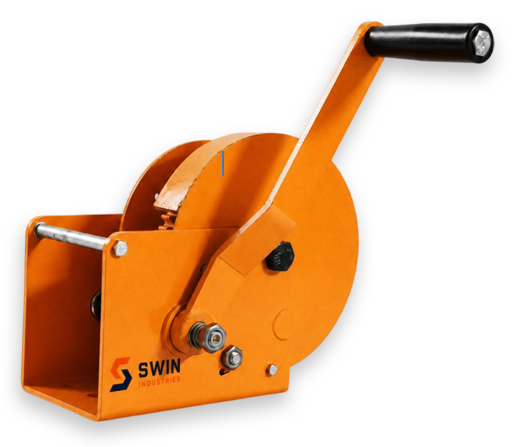

Spur Gear 350 kg Hand Winch

350 kg Spur Gear Hand Winch

The Spur Gear 350 kg Hand Winch is a compact manual winch suitable for light to medium-duty lifting and pulling applications. Its spur gear drive provides smooth and easy operation for controlled material handling work.

Get A Quote

Unique Features :

Smooth operation with spur gear drive
Compact and sturdy construction
Safe load holding in any position
Suitable for lifting and pulling applications
Epoxy / powder coated finish

Specifications :

Type : Spur Gear Hand Winch

Operation : Manual

Finish : Epoxy / Powder Coated

Application : Light / medium-duty lifting and pulling

Parameter	Details
Capacity - 1st Layer	350 kg
Capacity - 3rd Layer	290 kg
Capacity - Top Layer	210 kg
Wire Rope Diameter-Ø	5 or 6 mm
Wire Rope Length	15 mtr
Weight	6 kg without wire rope
Safety Factor	1.5
Brake Type	Load Pressure Brake with Ratchet Pawl Mechanism
Load Holding	In any position
