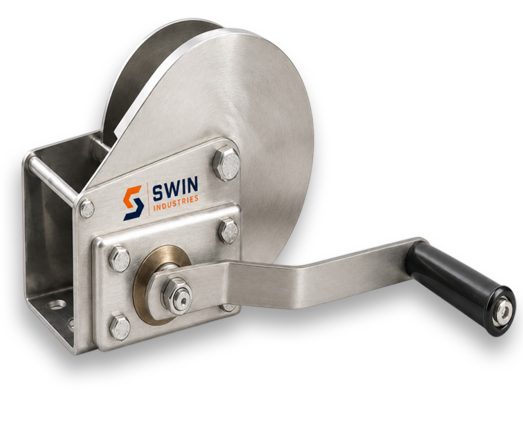

Spur Gear 250 kg Hand Winch SS304

High-Performance SS304/SS316 Hand winch

The Spur Gear 250 kg Hand Winch SS304/SS316 is a compact manual winch designed for light to medium-duty lifting and pulling applications. Its spur gear drive allows smooth and faster operation, while the SS304 construction makes it suitable for areas where corrosion resistance and hygiene are important.

Get A Quote

Unique Features :

Fast operation due to direct spur gear drive
Compact and lightweight design
Load pressure brake with double ratchet system
Holds the load safely in any position
Epoxy / powder coated finish

Specifications :

Type : Spur Gear Hand Winch

Operation : Manual

Material : SS304/SS316

Application : Light / Medium-Duty Lifting and Pulling

Finish : Stainless Steel Finish

Parameter	Details
Capacity - 1st Layer	250 kg
Capacity - 3rd Layer	200 kg
Capacity - Top Layer	150 kg
Wire Rope Diameter-Ø	5 mm
Wire Rope Length	20 mtr
Weight	4.2 kg without wire rope
Safety Factor	1.5
Brake Type	Load Pressure Brake with Ratchet Pawl Mechanism
Load Holding	In any position
