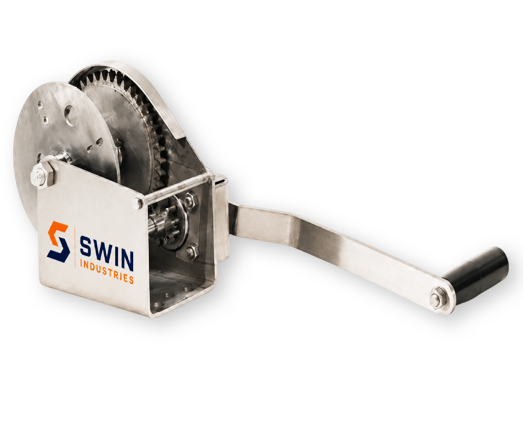

Spur Gear 500 kg Hand Winch SS304 / SS316

SS304 / SS316 Hand Winch 500 kg

The Spur Gear 500 kg Hand Winch SS304 / SS316 is a stainless-steel manual winch designed for medium-duty lifting and pulling applications. Its spur gear mechanism provides smooth and easy operation, while SS304 / SS316 construction makes it suitable for corrosion-prone, outdoor, marine, and hygienic environments.

Get A Quote

Unique Features :

Available in SS304 / SS316 materia
Smooth operation with spur gear drive
Corrosion-resistant construction
Suitable for outdoor and industrial applications
Strong and compact design

Specifications :

Type : Spur Gear Hand Winch

Operation : Manual

Finish : Stainless steel finish

Application : Medium-duty lifting and pulling

Material : SS304 / SS316

Parameter	Details
Capacity - 1st Layer	500 kg
Capacity - 3rd Layer	350 kg
Capacity - Top Layer	280 kg
Wire Rope Diameter-Ø	6 mm
Wire Rope Length	15 mtr
Weight	7.5 kg without wire rope
Safety Factor	1.5
Brake Type	Load Pressure Brake with Ratchet Pawl Mechanism
Load Holding	In any position
