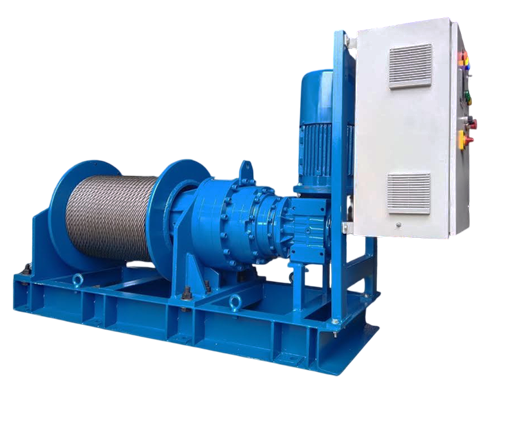

A robust 10-ton electric winch engineered for demanding crane-duty service. The unit combines a fabricated steel base, machined rope drum, high-reduction drive train, squirrel-cage motor, electro-hydraulic service brake and independent emergency brake.
Get A Quote
| PARAMETER | SWIN SPECIFICATION |
| Application / Duty | Heavy-duty electric winch for crane-duty lifting and pulling service |
| Base Construction | Welded structural-steel skid with chequered working deck, reinforcement ribs and integrated lifting lugs |
| Approx. Assembly Weight | 2,500 kg |
| Main Base Sections | ISMB 200 mm x 100 mm |
| Rope Drum | Seamless-steel fabricated drum with machined flanges, supported on roller bearings at both ends |
| Transmission | Primary crane-duty helical or worm reducer followed by spur gear and pinion reduction |
| Overall Reduction Ratio | Approximately 150:1 |
Configuration proposed for SWIN 10 Ton Electric Winch
| SYSTEM | DETAILS |
| Drive Motor | Crane-duty squirrel-cage induction motor, 25 HP, 415 V ±10%, 3-phase, 50 Hz, 960 rpm, Class F insulation, continuous duty (S1), CDF 40% |
| Drum & Pinion Shafts | EN8 forged-steel shafts, machined and suitably supported for the rated duty |
| Service Brake | Electro-hydraulic double-shoe thruster brake, approximately 300 mm brake-drum diameter |
| Emergency Brake | Independent hand-operated brake with ratchet arrangement for emergency stopping and holding |
| Coupling Arrangement | Brake drum / coupling fitted between motor and gearbox input shaft |
| Pendant Operation | Crane-duty pendant station with Forward and Reverse pushbuttons |
| Control Panel | Weather-protected IP55 enclosure with contactors, overload relay, ammeter/voltmeter, incoming indication, step-down control transformer and necessary protection devices |
| Motor Protection | Overload protection and miniature circuit-breaker protection for operating personnel and equipment safety |
| Surface Finish | Industrial primer followed by two coats of enamel paint; final colour as mutually agreed |
The values shown are based on the reference configuration supplied and are intended for technical proposal purposes. SWIN Industries reserves the right to optimise the design without reducing the stated performance or safety requirements.
