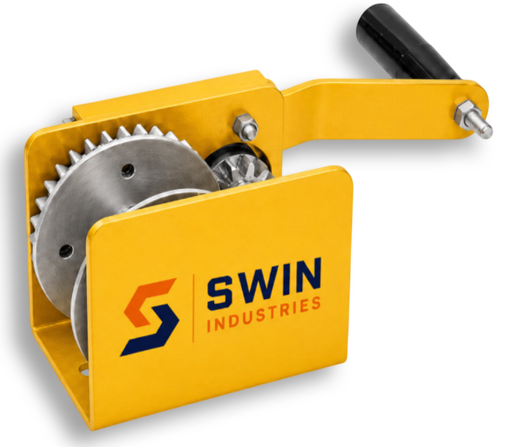

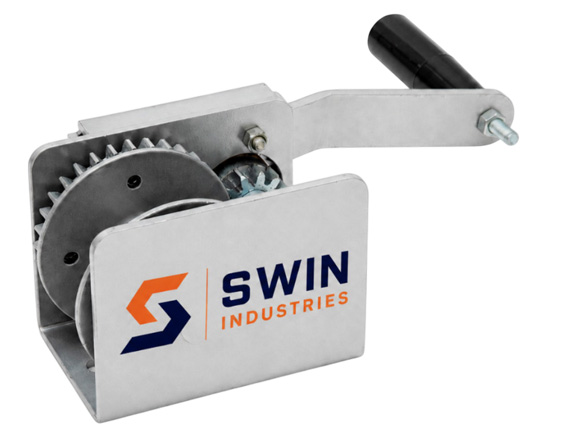

The Spur Gear 100 kg Hand Winch is a compact and lightweight manual winch designed for small lifting and pulling applications. Its direct spur gear mechanism allows faster operation and easy handling, making it suitable for light-duty work where space and portability are important.
Get A Quote
| Parameter | Details |
| Capacity - 1st Layer | 100 kg |
| Capacity - 3rd Layer | 60 kg |
| Capacity - Top Layer | 50 kg |
| Wire Rope Diameter-Ø | 4 mm |
| Wire Rope Length | 10 mtr |
| Weight | 2.4 kg without wire rope |
| Safety Factor | 2 |
| Brake Type | Load Pressure Brake with Ratchet Pawl Mechanism |
| Load Holding | In any position |
